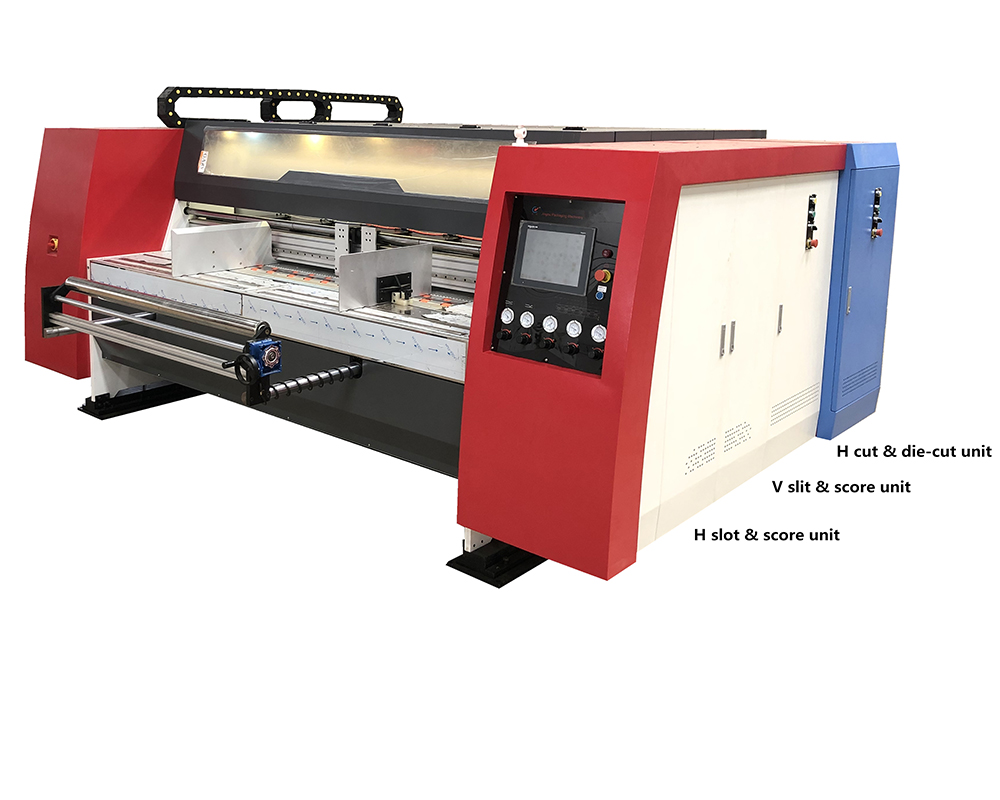

auto thin blade slitter scorer consists of a feeding system, a thin blade slitting system, a creasing system, an automatic tool setting system, an electric control operation platform and a safety protection device. It is a high-efficiency and high-precision corrugated cardboard post-processing equipment, mainly used for cardboard slitting and creasing.

auto thin blade slitter scorer Features

① High-precision automatic tool setting system

Auto thin blade slitter Scorer is equipped with an advanced automatic tool setting positioning system, and the error accuracy is controlled within ±0.25mm. The servo motor drives the knife group to move synchronously. Only by entering the slitting specifications, the position adjustment of all knife shafts and creasing wheels can be automatically completed. Each set of knives can adjust the spacing and position independently, greatly improving the adjustment efficiency and operation convenience, especially suitable for small and medium-sized carton factories with frequent order switching.

② Thin blade design, neater slitting

Auto Thin Blade slitter scorer uses a 1.2mm thick high-hardness alloy thin knife with a surface hardness of HRC60 or above. After precision grinding, it ensures that the edge of the cut is flat and burr-free, effectively avoiding problems such as cardboard delamination and collapse. The thin blade group supports automatic sharpening function. It automatically sharpens the blade edge after running a certain number of meters to ensure cutting sharpness, extend tool life, and reduce operating costs.

③ Multiple sets of pressing wheels, clearer indentation lines

The line pressing system is equipped with 4 sets of independent pressing wheels, which can set multiple indentation positions. The wheel spacing of each set is adjustable, and it supports fine-tuning of the upper and lower positions of the pressing wheels (adjustment accuracy is 0.1mm). It is suitable for three-layer or five-layer corrugated cardboard. After indentation, the lines are clear, the grooves are symmetrical, and the bending is free of cracks, which significantly improves the quality of carton forming.

④ Intelligent control interface, convenient human-computer interaction

Auto Thin Blade Slitter Scorer is equipped with a 10-inch touch human-computer interface, supports Chinese and English menu interfaces, and the system has built-in multiple sets of commonly used specification parameters that can be called with one click. It has functions such as production counting, fault alarm, and automatic homing. Operators can monitor the operation status of the knife shaft and the machine load in real time through the page, greatly improving operating efficiency and safety.

⑤ High-speed operation, stable and no shaking

The main motor power is 7.5kW, and the operating speed can reach 200 pieces/minute, which is suitable for efficient production of batch orders. Auto Thin Blade Slitter Scorer adopts gear transmission combined with silent bearings and thickened chassis structure to effectively eliminate vibration and operating noise, so that the equipment can maintain high-speed operation for a long time without displacement or knife jumping, and maximize the quality of cardboard cutting.

Auto Thin Blade Slitter Scorer Application

① Large carton packaging factory project in Dongguan, China

In a carton factory in Dongguan with an annual output of 10 million square meters, Auto Thin Blade Slitter Scorer is used for high-speed multi-batch slitting operations. Due to the variety of order types, the automatic tool setting system greatly shortens the manual tool change time. The equipment cuts an average of more than 15,000 sheets of corrugated cardboard every day, and its operation is stable, helping the factory achieve the production goal of "multi-variety, small batch, and fast delivery".

② Export packaging carton production base in Mumbai, India

A factory near the port of Mumbai, India, which specializes in customized packaging cartons for fruit exports, introduced this equipment for double-track creasing of standard three-layer and five-layer cardboard. The factory mainly exports fruit boxes such as mangoes and pomegranates that have high packaging requirements. The equipment has neat output lines and uniform pressing lines, with a conversion accuracy of more than 95%, which greatly reduces the loss and scrap rate of boxes.

③ Logistics and distribution packaging factory in central Mexico

At a logistics and distribution packaging base in León, Mexico, Auto Thin Blade Slitter Scorer is used for batch production of standard express cartons. Because the factory operates in three shifts, it has extremely high requirements for the continuous operation stability of the equipment. This equipment has achieved 20 hours of continuous trouble-free operation, and with its own automatic tool grinding system, it has significantly reduced maintenance costs and has been unanimously recognized by the operator.

④ Light industrial products packaging factory in Warsaw, Poland

A factory in Poland that mainly provides outer packaging for electronic parts manufacturers has reduced the original manual tool adjustment time from 15 minutes each time to 2 minutes after introducing this equipment. The high-precision servo control of the equipment is suitable for products with high requirements for indentation accuracy, such as headphone boxes and window packaging, which are very competitive in the local market in Warsaw.
