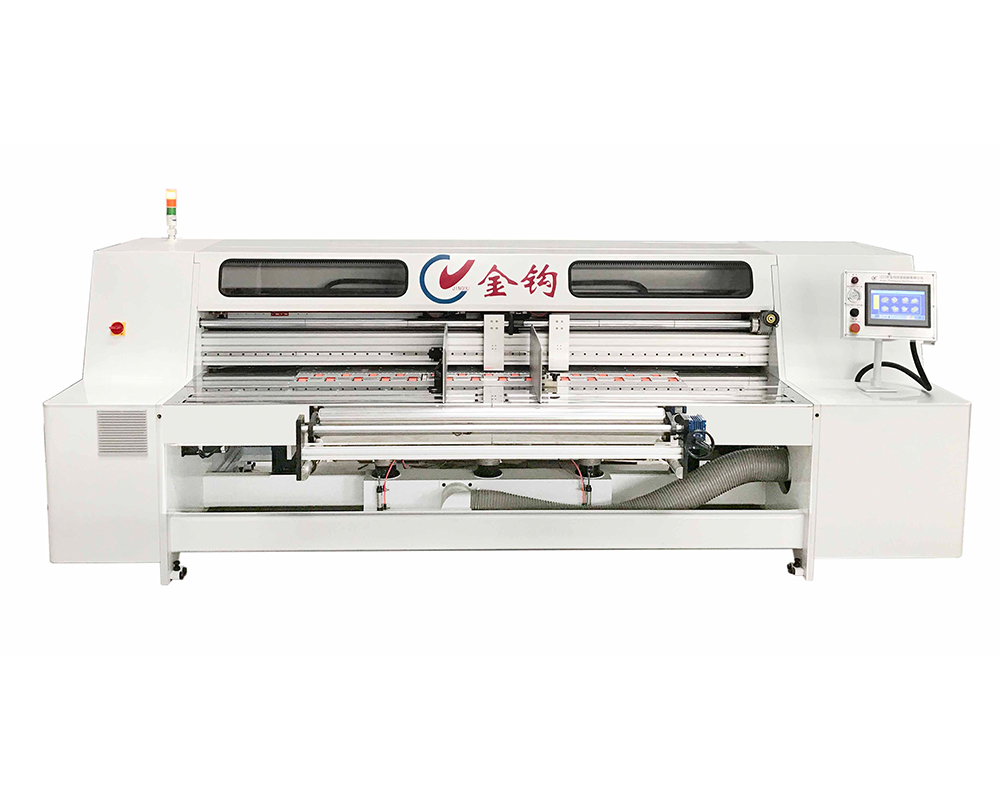

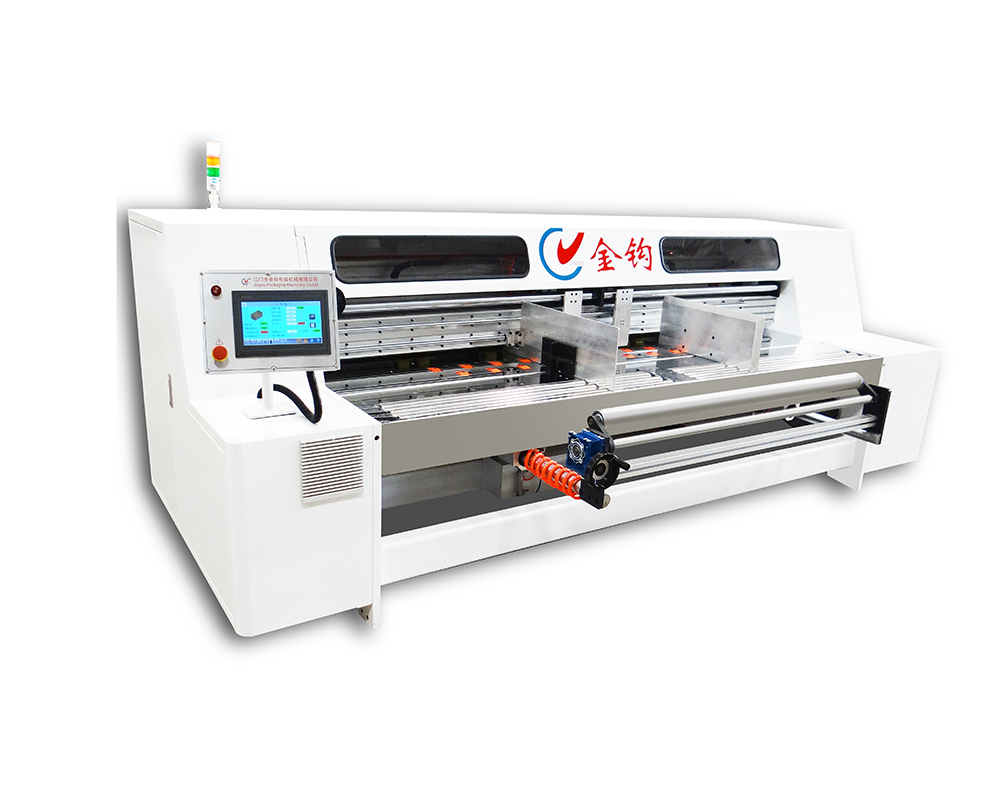

Corrugated Paper Box Making Machine is a high-precision and high-efficiency equipment system dedicated to the production of corrugated paper packaging boxes. It integrates slotting, creasing, cutting, forming and gluing functions. The whole machine structure adopts an integrated modular design, which is stable and reliable and supports all-weather uninterrupted operation.

Corrugated Paper Box Making Machine Features

① Efficient automation

Corrugated Paper Box Making Machine adopts a one-button intelligent control system, which coordinates the operation of each station through PLC program instructions. The entire box making process, from raw material feeding, cutting, slotting, creasing, to final gluing and output, is completed automatically without repeated manual intervention. The equipment supports an operating efficiency of 400-600 sheets/hour, which is especially suitable for large-volume order production. The touch screen panel can realize parameter preset, size adjustment, mode switching and other operations, and it only takes a few minutes to switch orders. Multiple stations are equipped with position sensors and overload alarm devices, which can operate continuously under the premise of ensuring safety. Compared with traditional manual production, the equipment can save an average of 56 operators, save more than 10,000 US dollars in labor costs each year, and significantly improve the return on investment.

② Multi-specification compatibility

The Corrugated Paper Box Making Machine is designed to support extremely wide specification compatibility, with a maximum paper feed width of 2500mm and a minimum size of 120mm*350mm, which can cover more than 90% of the carton production specifications currently on the market. The equipment supports three-layer, five-layer and even seven-layer corrugated cardboard, and the feeding system has the function of automatically adjusting the thickness. For different box types, the operator can call out the set process parameters through the template without repeated calibration. The equipment also supports multi-knife bidirectional cutting and multi-pass synchronous creasing processes to ensure uniform creasing depth, neat cutting edges and precise forming under different sizes. This versatility is particularly suitable for packaging plants with diverse order structures and frequent changes, which can maximize production flexibility and response speed.

③ High-precision processing

High precision is the most core indicator in carton processing, and the Corrugated Paper Box Making Machine is particularly outstanding in this regard. Its core drive unit uses imported servo motors and encoder systems, combined with Japanese original linear guide rails, to control the paper feeding and cutting process within the error range of ±0.5mm, which is particularly suitable for industries such as e-commerce and medicine that have extremely high requirements for packaging consistency. In addition, the Corrugated Paper Box Making Machine is equipped with a fully automatic deviation correction device to ensure stable paper operation during long-term continuous operation. The cutting system uses wear-resistant alloy steel blades, and the cutting edge is smooth and burr-free, effectively avoiding the box from breaking or unstable stacking. For end users, this highly consistent finished product not only improves the aesthetics of the packaging, but also improves the safety factor of logistics and transportation.

④ Energy-saving and environmentally friendly structure

The Corrugated Paper Box Making Machine fully incorporates energy-saving and environmental protection concepts in the design process. First, the whole machine adopts a variable frequency drive system, which automatically adjusts the power output according to the process requirements, and can save more than 30% energy compared with traditional fixed frequency equipment; secondly, it adopts water-based environmentally friendly printing inks and adhesives to effectively reduce the emission of volatile organic compounds (VOCs), meeting the EU ROHS and China Green Certification standards; thirdly, the transmission structure and tool system are equipped with an automatic lubrication system to extend the life of the machine while reducing lubricant waste. The operating noise of the equipment is as low as ≤72dB, which helps to improve the quality of the workshop working environment. The overall energy consumption control is excellent, suitable for modern manufacturing companies pursuing low-carbon production and ESG strategies.

Corrugated Paper Box Making Machine Application

① Toronto Food Packaging Factory in Canada

In a large food packaging factory in Toronto, the Corrugated Paper Box Making Machine is used to mass-produce carton packaging for instant noodles, breakfast cereals and frozen foods. These packages have high requirements for printing color, cardboard strength and environmental performance. The equipment supports multi-channel slotting and high-speed forming, which not only improves production capacity, but also ensures structural integrity during food transportation. Since Canada has very strict environmental protection indicators for packaging, this model uses water-based ink printing and meets CSA safety standards, making it an ideal choice for the local food industry.

② Packaging Department of London Book Publishing Company, UK

A London book publisher introduced this machine for the box making needs of book gift boxes, children's book bags and hard shell packaging. The multi-specification adjustment system supported by the equipment can accurately produce a corrugated protection structure exclusive to books, protecting the corners from deformation and the box from collapse. At the same time, the printing part can integrate book information, LOGO and barcodes, greatly improving the personalization of packaging and the efficiency of file management. The publishing company specifically pointed out that the equipment is extremely stable and easy to maintain, which is suitable for the packaging needs of long-term continuous publishing projects.

③ High-end Customized Gift Box Manufacturer in Dubai, UAE

A luxury packager in Dubai customizes high-end cartons for perfume and jewelry customers, and chooses to use Corrugated Paper Box Making Machine for basic structure production, and cooperates with post-process manual craftsmanship for decoration. The equipment has good indentation line control ability and precise corner cutting ability, making it an indispensable basic tool in the gift packaging production process. Customers reported that the equipment has clear grooves and smooth blades, which effectively improves the overall texture of the finished product packaging and enhances the added value of the product in the high-end market.

④ Los Angeles e-commerce logistics sorting center

The center provides product packaging and sorting and packaging services for Amazon, Walmart and other platform merchants, with variable order specifications and high shipment frequency. The fast order change capability of the Corrugated Paper Box Making Machine plays an important role here. Simply enter the carton number on the screen to quickly call up the relevant production parameters and complete the adjustment within 10 minutes. The equipment is connected to its MES management system to achieve digital scheduling and inventory docking, effectively improving order response speed and intelligence.
