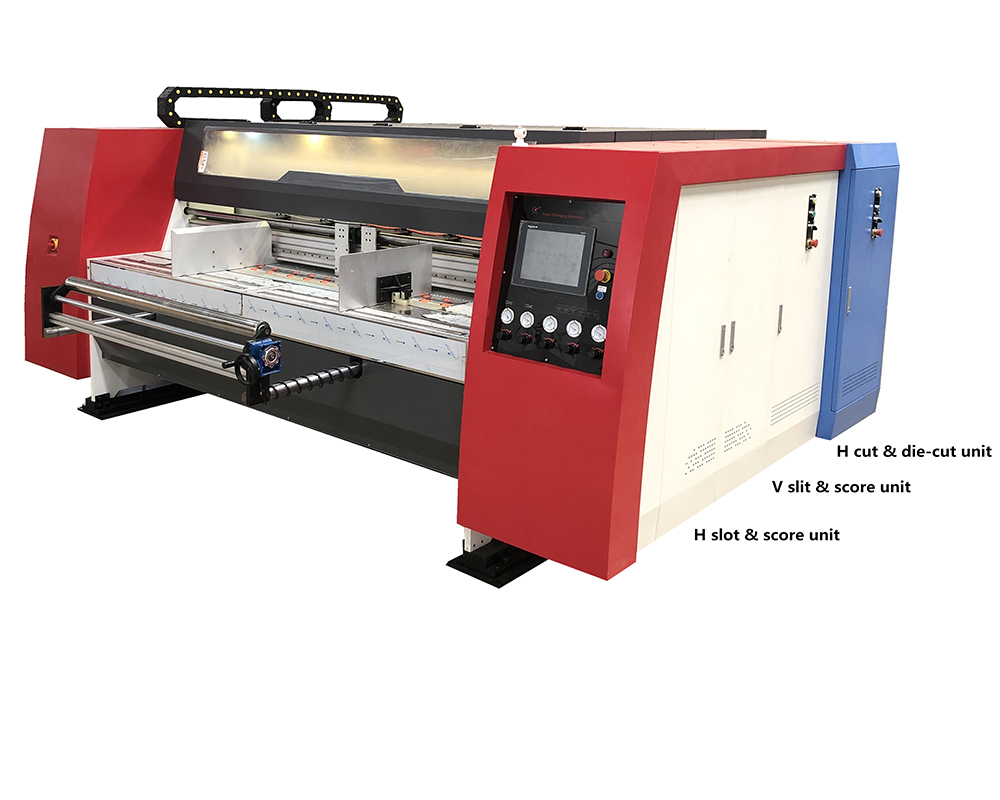

The Corrugated Carton Making Machine includes key structural modules such as automatic paper feeding system, printing unit, slotting and creasing unit, die-cutting system, gluing and sealing unit, and stacking output system. The shell is mainly welded from high-strength steel. The control system integrates core electronic components such as PLC automatic control, touch screen human-machine interface, servo drive, and inverter. It is the key equipment for modern carton factories to achieve mass, customized, and efficient production.

Corrugated Carton Making Machine Features

1. High automation, saving labor costs

The Corrugated Carton Making Machine integrates intelligent paper feeding, automatic positioning, precise versioning, program memory and other functions, which can achieve fully automatic one-button operation. Using Japan's Panasonic PLC control system and servo paper feeding system, the machine adjustment time is less than 5 minutes, and one person can complete the entire production process, saving more than 60% of the labor of traditional carton factories.

2. High-speed production efficiency, suitable for large-volume orders

The standard model has a production capacity of 150~250 sheets/minute, suitable for paper materials of different thicknesses such as single-wall, double-wall, and three-layer cardboard. The printing unit adopts ceramic anilox roller + high-precision registration system to ensure that the overprint error is controlled within ±0.5mm at high speed. It is an ideal equipment for large orders such as e-commerce logistics and industrial packaging.

3. Multi-function integration, adaptable to different carton processes

Corrugated Carton Making Machine supports a variety of functional combinations such as four-color flexographic printing, automatic slotting, creasing, die-cutting, pasting, laminating, and nailing. According to user needs, flat-press flat die-cutting or round-press round die-cutting structure can be configured to achieve efficient forming of complex structure cartons such as special-shaped windows, handle holes, tongues, and lids.

4. Modular structure for easy upgrading and maintenance

Corrugated Carton Making Machine adopts modular splicing design, and each unit is independently driven, maintained, and replaced. The main transmission part adopts imported SKF bearings and Taiwan precision gearboxes, and the key moving parts are equipped with a centralized automatic lubrication system as standard to reduce the failure rate and increase the life of the equipment. Under normal use, it can run continuously for more than 8 years.

5. Intelligent parameter memory to improve switching efficiency

The HMI touch system can preset different product work order parameters, and the system automatically adjusts the corresponding pressing wheel, slotting, and die-cutting positions when switching orders. The memory capacity can reach 999 operating procedures, which can quickly call repeated orders and significantly improve the order change speed and production flexibility.

6. Low-energy drive to save operating costs

The power configuration of the Corrugated Carton Making Machine is reasonable, and the main power adopts a combination of frequency conversion control + energy-saving motor, which saves 15%~25% energy compared with traditional equipment. With the intelligent standby management system, the equipment enters low-power mode when idling or shutting down, reducing energy consumption and complying with the green factory energy-saving policy.

Corrugated Carton Making Machine Application

1. Large express carton manufacturing plant

The Corrugated Carton Making Machine is widely used in the production of medium and large express corrugated cartons in the factory of WPack Logistics Packaging Company in Poland. The customer uses a four-color printing system with double corrugated boards, with a daily output of more than 50,000 pieces, effectively meeting the large-scale delivery needs of e-commerce customers.

2. Customized fruit and vegetable packaging box factory

At the AGRIPACK carton factory in Guadalajara, Mexico, the Corrugated Carton Making Machine is used for customized fruit export box production, supporting special-shaped die-cutting + moisture-proof coating printing functions. It adapts to the diverse needs of fruit and vegetable packaging, helps customers quickly switch orders, and serves more than 100 agricultural product exporters.

3. Heavy industrial carton packaging factory

The Corrugated Carton Making Machine is equipped with a reinforced crimping die-cutting structure and has been successfully used by HAGEN Industrial Packaging Company in Cologne, Germany, to provide customized compression-resistant cartons for mechanical parts, supporting a maximum cardboard thickness of 12mm, and the formed carton can bear a load of more than 80kg.

4. Middle East home appliance packaging company

The JALAL Packaging Center in Dubai, UAE, uses the Corrugated Carton Making Machine with a laminating glue system to produce large-scale TV and refrigerator packaging boxes. The program memory function improves the speed of production change, supports 6 to 8 home appliance brand packaging order switching per month, and is the core equipment of the regional OEM supply center.

5. South American wine transport carton manufacturer

At CARTA Winery Packaging in Santiago, Chile, the Corrugated Carton Making Machine is used with a water-based moisture-proof printing system to manufacture red wine transport packaging boxes. It supports window die-cutting and rib structure design, with an annual shipment of over 2 million high-end wine cartons, and is deeply trusted by customers.

6. Asian e-commerce distribution platform storage carton factory

A Chinese manufacturer exports the Corrugated Carton Making Machine to the SPEEDBOX e-commerce carton factory in Manila, Philippines, for e-commerce daily grocery delivery box customization. With the help of the automatic gluing system and stacking discharge module, the packaging automation efficiency is significantly improved, which is suitable for logistics supply on platforms such as Pinduoduo, Shopee, and Lazada.

Additional services and support:

• Support global installation and commissioning, provide English operation manual and remote training

• Customizable automatic stacking, code scanning recognition system, ERP linkage interface

• Output 3D layout, foundation installation diagram, power supply and gas source standards

• Provide spare parts list and replacement guidance video for wearing parts

• Complete export documents: CE certification, COC, certificate of origin, SASO, etc.
